Parameter specifications

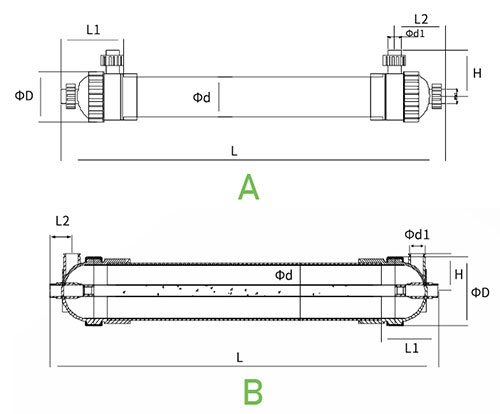

| Specification | Overall dimensions | ||||||
|---|---|---|---|---|---|---|---|
| Φd | ΦD | L1(mm) | L2(mm) | H | Φd1 | Φd1 | |
| 2"-A | 50.0 | 85.0 | 90.0 | 72.0 | 56.0 | 12.0 | Hose Adaptor |
| 4"-A | 90.0 | 110.0 | 115.0 | 101.0 | 110.0 | 32.0 | Union Inlet/Outlet |
| 5"-A | 140.0 | 160.0 | 165.0 | 140.0 | 170.0 | 32.0/40.0 | Union Inlet/Outlet |
| 6"-A | 160.0 | 195.0 | 207.0 | 183.0 | 164.0 | 40.0 | Union Inlet/Outlet |
| 6"-B | 160.0 | 195.0 | 176.0 | 112.0 | 158.0 | 40.0 | Union Inlet/Outlet |
| 6"-C | 160.0 | 220.0 | 274.0 | 214.0 | 170.0 | 40.0/50.0 | Union Inlet/Outlet |
| 8"-A-1 | 200.0 | 240.0 | 243.0 | 208.0 | 187.0 | 50.0 | Union Inlet/Outlet |
| 8"-A-2 | 200.0 | 230.0 | 243.0 | 280.0 | 187.0 | 50.0 | Union Inlet/Outlet |
| 8"-A-3 | 200.0 | 245.0 | 236.0 | 190.0 | 145.0 | 60.0 | Coupling Inlet/Outlet |
| 8"-B | 200.0 | 235.0 | 175.0 | 73.0 | 158.0 | 50.0 | Coupling or Union Inlet/Outlet |
| 9"-B-1 | 225.0 | 280.0 | 236.0 | 73.0 | 180.0 | 50.0 | Coupling Inlet/Outlet |
| 9"-B-2 | 225.0 | 251.0 | 177.0 | 67.0 | 160.5 | 60.0 | Coupling Inlet/Outlet |
| 9"-B-3 | 225.0 | 273.0 | 236.0 | 136.0 | 180.0 | 50.0 | Coupling Inlet/Outlet |
| 10"-B | 250.0 | 280.0 | 173.0 | 73.0 | 172.0 | 50.0 | Coupling or Union Inlet/Outlet |
| 12"-A | 315.0 | 360.0 | 208.0 | 263.0 | 224.0 | 75.0 | Coupling Inlet/Outlet |
